A tomato plant can look perfectly manageable in May, then become difficult to control once fruit starts filling the branches. Heavy clusters pull stems downward, while wind can push a loaded plant against a flimsy frame and loosen it from the soil. A suitable plant support can prevent that problem before the crop reaches its heaviest stage.
But what actually makes a tomato cage "heavy duty"?
Wire gauge is one factor, but it is not the whole answer. Steel type, surface coating, frame design, dimensions, load capacity, and anchoring all affect how a support performs during a full growing season. This guide examines those factors in detail, then compares common specifications and explains how to choose tomato plant supports for different varieties, garden layouts, and weather conditions.
Tomato varieties have different growth habits, so their support requirements are not identical. Determinate varieties stop growing after reaching a defined size, while indeterminate varieties continue producing stems and fruit throughout much of the growing season.
An indeterminate tomato can reach 6 to 8 feet under suitable growing conditions.
That is a lot of plant above the soil.
As new stems develop, fruit clusters add weight at several points along the plant. A mature plant can place considerable downward and sideways pressure on its support, especially after rain has soaked the foliage and fruit.
Wind creates another source of stress.
A tall plant acts much like a flexible sail when its foliage is dense. Each gust transfers movement into the cage, while wet soil can reduce the resistance around the legs. Repeated movement can gradually loosen a support even when the wire itself does not bend.
Weak support creates several problems.
A cage that leans can pull stems away from their intended position, while branches touching the ground become more vulnerable to rot and insects. Fruit that rests against damp soil can also develop damage before it reaches harvest.
Yield can suffer as a result.
Strong support keeps the main canopy elevated and gives branches a structure to lean against as fruit develops. For large indeterminate plants, the support needs to remain stable late in the season rather than only during early growth.

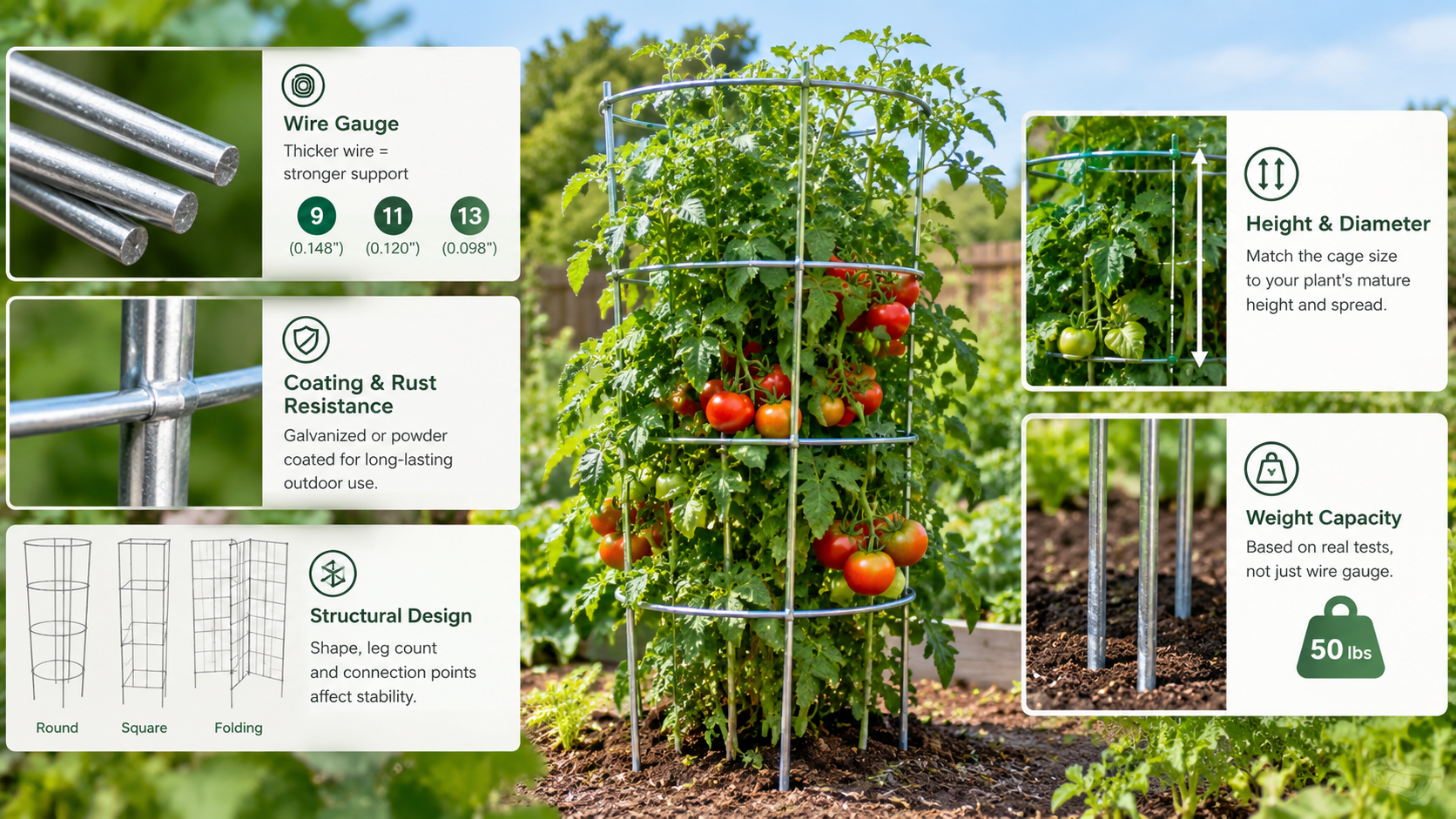

A heavy duty support is defined by its complete construction rather than one isolated specification.
For buyers comparing garden hardware, the most useful approach is to examine the frame as a load-bearing structure. Wire thickness, coating, geometry, size, and rated capacity should all make sense together.
Wire gauge describes wire thickness, and the gauge number moves in the opposite direction from diameter.
A 9-gauge steel wire measures about 0.1483 inches in diameter, while 11-gauge wire measures about 0.1205 inches. Because the 9-gauge wire has a larger cross-sectional area, it generally offers greater resistance to bending under comparable conditions.
That difference matters as plants become heavier.
A 9-gauge galvanized steel frame can be specified for large indeterminate varieties, while an 11-gauge frame may be appropriate for smaller determinate plants. Thinner 13-gauge wire is more commonly suited to light-duty garden use where the plant remains compact.
Wire gauge alone does not determine the final strength.
Steel grade, weld quality, vertical leg arrangement, ring spacing, and frame diameter all influence how a cage handles force. A poorly joined 9-gauge frame can perform worse than a carefully constructed cage made with slightly thinner wire.
A practical plant support should therefore be evaluated as a complete structure.
Steel used outdoors needs protection against moisture and soil contact.
Galvanized steel receives a zinc coating that protects the underlying steel from corrosion, making galvanized wire a common choice for garden structures that remain outdoors for extended periods. Hot-dip galvanizing can create a relatively thick zinc layer suitable for outdoor exposure.
Powder coating uses a cured polymer finish over the steel surface.
It offers a clean appearance and allows manufacturers to supply different colors, which can be useful for retail garden products. However, a deep scratch, cut edge, or damaged weld can expose the underlying steel and create a potential corrosion point.
For a cage intended for repeated outdoor use, finish quality deserves close attention.
A galvanized finish is also useful where the cage legs remain in soil for much of the season. Powder-coated products can perform well too, but coating coverage around bends and joints should be checked before purchase.
Shape affects how a frame distributes the forces created by a growing plant.
Round cages create continuous support around the plant and work well for freestanding plants with branches spreading in several directions. Square tomato cages create four defined sides, which can make them easier to align in rows where space between plants needs to remain predictable.
Folding panel designs take a different approach.
Individual panels can be connected around the plant and folded for storage or transport. This format can reduce storage volume, although hinges and connection points become additional areas that need inspection.
Leg count also affects stability.
A four-leg frame may be sufficient for moderate conditions, while six-leg construction distributes the cage load over more points. For exposed gardens, the cage legs should generally enter firm soil by about 8 to 12 inches, with separate anchors used where stronger wind resistance is required.
A cage should match the mature size of the plant rather than its size when transplanted.
For many indeterminate varieties, a 60 to 72 inch cage gives the plant useful vertical support through a large portion of the growing season. Vigorous varieties may require a taller structure, particularly where the growing season allows continued upward growth.
Determinate plants often need less height.
Diameter is just as important.
A narrow frame can crowd branches and concentrate fruit weight close to the center. A wider frame gives lateral branches more room to spread and creates more access for harvesting.
For square frames, side length should also be considered.
A 16-inch square frame has a different usable growing area from a 16-inch round frame, even though both have similar nominal dimensions. Garden layout therefore matters when selecting the frame shape.
Load capacity should come from a defined product test rather than a generic assumption about wire gauge.
For example, a manufacturer could specify a 9-gauge galvanized steel cage with a tested load rating of up to 50 pounds of evenly distributed fruit and branch weight. That figure is a product-specific benchmark, not a universal capacity for every 9-gauge cage.
Load distribution changes the result.
Fifty pounds spread across several vertical supports creates less concentrated stress than a heavy branch pressing against one weld point. Wind also introduces lateral forces that a simple vertical load test may not represent.
For commercial purchasing, ask for the tested capacity and test conditions.
That information is more useful than wire gauge alone.
There is no single specification that defines every heavy duty cage, so the table below uses practical product categories for comparison. Load capacities are reference specifications that should be confirmed against the manufacturer's actual design and testing.
Specification | Light Garden Cage | Standard Metal Cage | Reinforced Cage | Heavy Duty Cage | Commercial Heavy Duty Cage |
|---|---|---|---|---|---|
Material | Low-carbon steel | Carbon steel | Galvanized steel | Galvanized steel | Heavy galvanized steel |
Wire Gauge | 13 gauge | 11 gauge | 10 gauge | 9 gauge | 8 gauge |
Coating | PVC coated | Powder coated | Electro-galvanized | Hot-dip galvanized | Heavy galvanized |
Height | 36–42 in | 42–54 in | 48–60 in | 60–72 in | 72–84 in |
Diameter / Width | 12–16 in | 14–18 in | 16–20 in | 18–24 in | 20–30 in |
Reference Load Capacity* | 15–20 lb | 20–30 lb | 30–40 lb | Up to 50 lb | 50–70+ lb |
Typical Application | Compact plants | General garden use | Larger plants | Large indeterminate plants | Intensive production |
Typical Service Life** | 1–3 seasons | 2–4 seasons | 3–5 seasons | 5+ seasons | 5+ seasons |
*Reference load figures are examples for product comparison and are not universal industry ratings. Actual capacity depends on frame geometry, weld construction, installation, load distribution, and weather exposure.
**Typical service life varies with coating quality, soil moisture, climate, handling, and storage.
Not every garden needs the heaviest frame.
A compact determinate plant may perform well with an 11-gauge cage, while a large indeterminate variety can justify the additional material used in a 9-gauge structure. The goal is to match the frame to the expected plant load rather than simply selecting the thickest available wire.
Start with the variety you plan to grow and estimate its mature height before comparing cage specifications. A support that works for a 3-foot determinate plant may be inadequate for an indeterminate variety that continues producing new growth for months.
For backyard gardens, 10-gauge or 11-gauge steel can suit many medium-sized plants where wind exposure is moderate. Larger plants may justify a 9-gauge frame with a height of 60 inches or more.
Small commercial growers have additional considerations.
Uniform cage dimensions can simplify row spacing and crop management, while consistent wire specifications make repeat purchasing easier. Bulk buyers should also consider nested or folded packaging because large metal frames can occupy considerable warehouse and shipping volume.
Climate changes the anchoring requirement.
Wind-prone gardens should use reinforced ground stakes rather than relying entirely on cage legs. A 12 to 18 inch rebar stake driven into firm soil can add meaningful resistance against sideways movement when properly attached to the frame.
Soil type matters as well.
Loose soil provides less holding power than compact soil, particularly after heavy rainfall. In such conditions, deeper anchors or additional attachment points may be necessary.
Shape should match your garden layout.
Square tomato cages can fit neatly into organized rows because their straight sides create predictable spacing between neighboring plants. Round cages are often more convenient for freestanding plants because branches can spread around the entire perimeter.
Training method should also influence the decision.
A single-stem plant can work with a narrow support structure, while a multi-branch plant needs room for lateral growth. Choose the frame based on how you intend to train the plant rather than only on its appearance at planting time.
Even a heavy steel frame can become unstable if it is installed poorly.
Set the cage legs into firm soil before the plant becomes large, and aim for at least 8 to 12 inches of penetration for standard garden conditions. Loose or sandy soil may require deeper anchoring because the surrounding ground offers less resistance.
High-wind locations need additional reinforcement.
Use 12 to 18 inch ground anchors or rebar stakes where strong gusts are common, and connect the anchor to a vertical section of the frame rather than a thin horizontal ring. Large plants may require more than two anchor points if the canopy becomes tall and dense.
Inspection should happen during the season, not only after damage occurs.
Check the cage every four to six weeks for rust spots, bent vertical wires, loose joints, and movement around the legs. A vertical member that has shifted more than about one inch from its original position deserves attention before the plant becomes heavier.
Look closely at welded areas.
Small coating damage around a weld can expose bare steel, while repeated bending at the same joint can weaken the connection. Early correction is easier when the plant is still manageable.
At the end of the season, clean off soil and plant residue before storage.
Keeping the frame dry between growing seasons can reduce unnecessary corrosion and make the next installation easier.
9-gauge wire is a strong choice for a heavy duty tomato cage used with large indeterminate plants.
Its larger diameter generally gives it greater resistance to bending than 11-gauge wire, although frame design and weld quality also affect overall strength.
A heavy duty tomato cage should generally be 60 to 72 inches tall for many indeterminate varieties.
Taller varieties may require an 84-inch frame or additional upper support if the plant continues growing beyond the cage.
Yes, tomato plant supports can withstand strong wind when the frame is properly anchored and matched to the plant size.
A heavy-gauge cage alone cannot prevent movement in loose soil, so 12 to 18 inch ground anchors may be necessary in exposed locations.
Square tomato cages can be better for organized rows, while round cages can suit freestanding plants with branches spreading in multiple directions.
The better shape depends on row spacing, plant training, and available garden space.

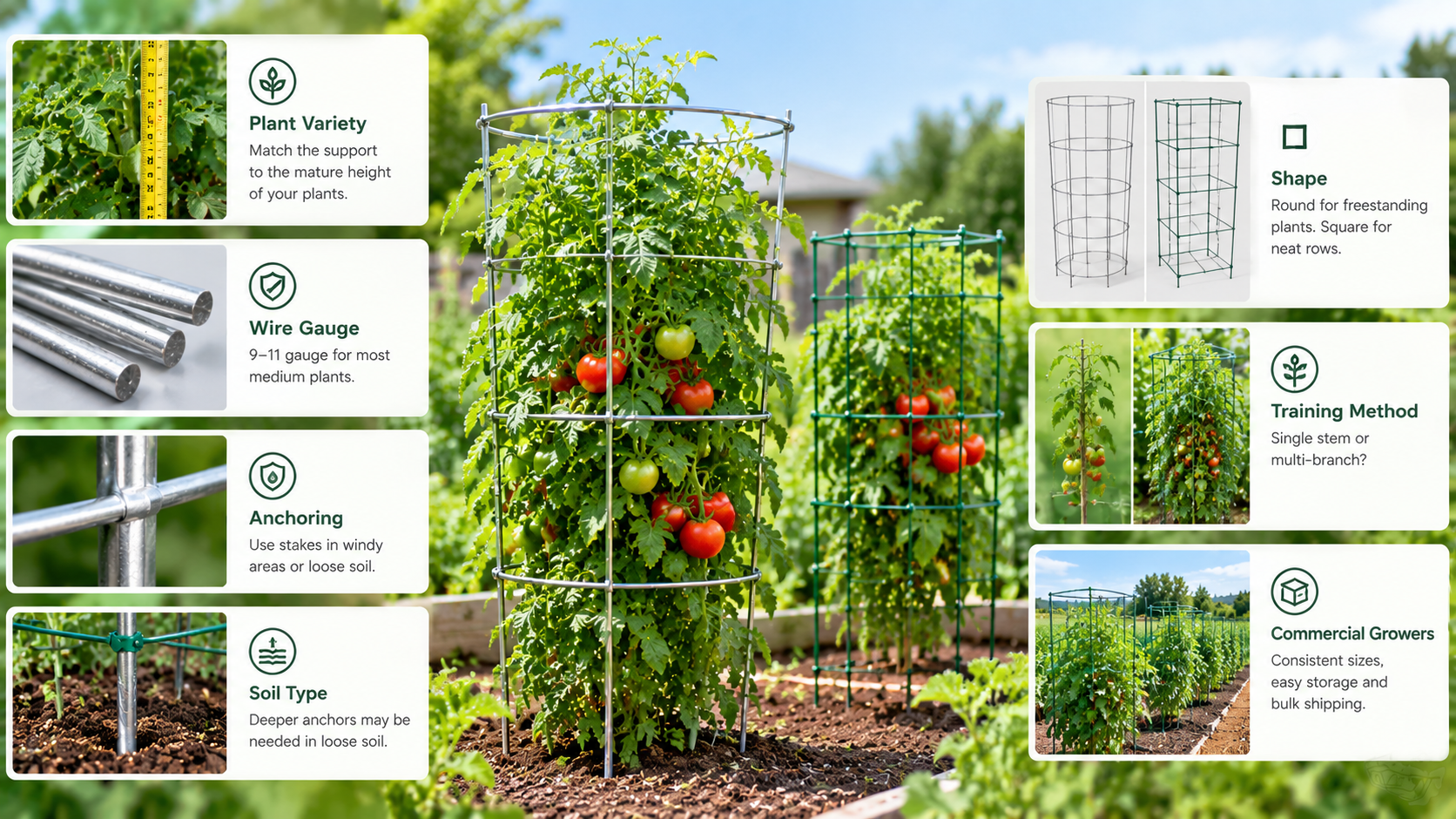

Choosing a strong support starts with the plant, not the product label. Wire gauge, steel material, coating, frame shape, height, diameter, load capacity, and anchoring should all match the expected growing conditions. A 9-gauge galvanized steel frame with a 60 to 72 inch height is a practical specification for many large indeterminate varieties, while smaller plants may need less material and height.
Jiangmen Zhaosheng Hardware Co., Ltd. manufactures galvanized steel garden supports, including square tomato cages, with customizable dimensions for different growing and retail requirements. OEM and ODM production is available for buyers who need specific wire gauges, cage sizes, finishes, packaging, or bulk quantities.
If you are sourcing tomato plant supports for retail or garden use, review the available product range or request a quote based on your required specifications and order volume.
